Introducing Next Generation G11
CMC’s new and improved G11 represents our next generation of high strength, low volume 11 mm G-Rated rope. Constructed with a higher carrier count than its predecessor, our new G11 has greater sheath durability, more strength, and less elongation. Its Kernmantle polyester sheath and nylon core are optimized for enhanced safety, performance, and knotability.
CMC G11 is a complete rope with a well balanced composition. It provides a firm, cohesive feel while remaining supple, lightweight, and easy to handle. Built to perform and endure, CMC G11 is ideal for use in NFPA General Use 11 mm rope systems like the DOUBLE CLUTCH TTRS. CMC G11 runs smoothly and stands out. Available in 4 bright colors with a white X pattern tracer.
Rope is sold by the foot. Rope ends are included. No charge on custom cutting. See table below for maximum lengths.
Features:
11 mm (7/16 in) G-Rated rope
High strength, low volume
Exceptional sheath durability
Lightweight and easy to handle
Builds 11 mm G-Rated Systems

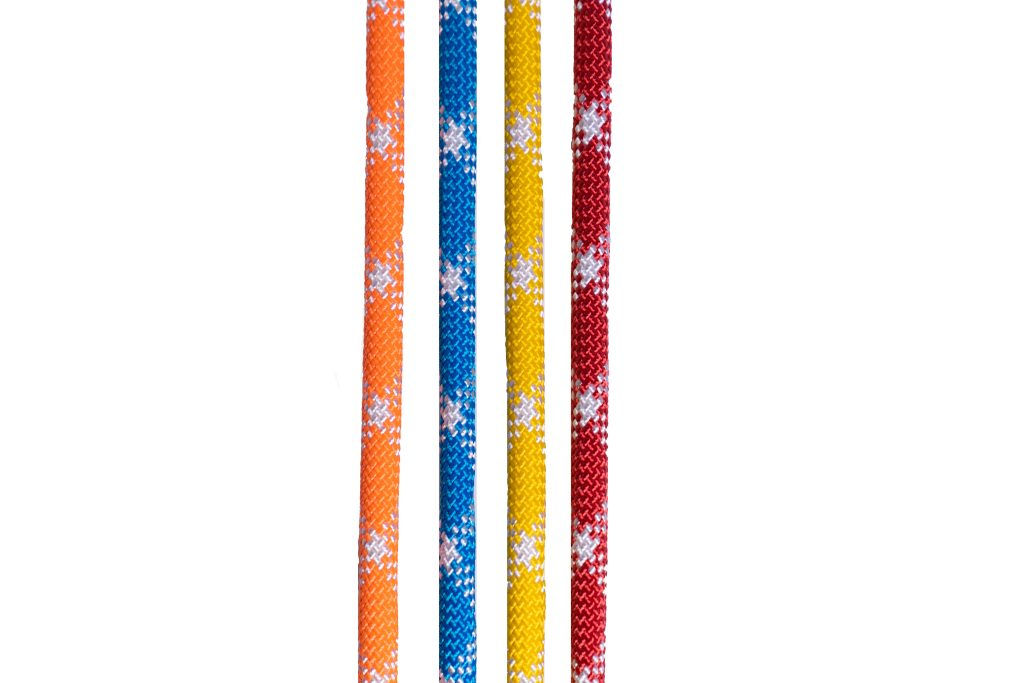

Available in 4 colors with white tracer
Specifications:
Kernmantle Construction
Polyester Sheath
Nylon Core
Elongation (Per UL Classification)
3.1% @ 1.35kN (300 lbf)
5.1% @ 2.7kN (600 lbf)
7.6% @ 4.4kN (1,000 lbf)
Minimum Breaking Strength: 40.5kN (9,107 lbf)
Certification: NFPA General Use
Sheath Construction: 48 Carrier Count
Weight: 2.8 kg (6.25 lbs) / 30 m (100 ft)
Diameter: 11 mm (7/16 in)
Made in the USA
OPTION
ITEM
WEIGHT PER 100 FT
DIAMETER
COLOR / STRIPE
NFPA RATING
3 SIGMA MBS
TYPE
MAX LENGTH

ORANGE, 7/16 150 FEET
283131-150
2.8 KG (6.25 LB)
11 MM (7/16 IN)
ORANGE / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

ORANGE, 7/16 200 FEET
283131-200
2.8 KG (6.25 LB)
11 MM (7/16 IN)
ORANGE / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

ORANGE, 7/16 300 FEET
283131-300
2.8 KG (6.25 LB)
11 MM (7/16 IN)
ORANGE / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

ORANGE, 7/16 CUSTOM LENGTH
283131
2.8 KG (6.25 LB)
11 MM (7/16 IN)
ORANGE / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

BLUE, 7/16 150 FEET
283132-150
2.8 KG (6.25 LB)
11 MM (7/16 IN)
BLUE / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

BLUE, 7/16 200 FEET
283132-200
2.8 KG (6.25 LB)
11 MM (7/16 IN)
BLUE / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

BLUE, 7/16 300 FEET
283132-300
2.8 KG (6.25 LB)
11 MM (7/16 IN)
BLUE / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

BLUE, 7/16 CUSTOM LENGTH
283132
2.8 KG (6.25 LB)
11 MM (7/16 IN)
BLUE / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

RED, 7/16 150 FEET
283133-150
2.8 KG (6.25 LB)
11 MM (7/16 IN)
RED / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

RED, 7/16 200 FEET
283133-200
2.8 KG (6.25 LB)
11 MM (7/16 IN)
RED / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

RED, 7/16 300 FEET
283133-300
2.8 KG (6.25 LB)
11 MM (7/16 IN)
RED / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

RED, 7/16 CUSTOM LENGTH
283133
2.8 KG (6.25 LB)
11 MM (7/16 IN)
RED / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

YELLOW, 7/16 150 FEET
283137-150
2.8 KG (6.25 LB)
11 MM (7/16 IN)
YELLOW / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

YELLOW, 7/16 200 FEET
283137-200
2.8 KG (6.25 LB)
11 MM (7/16 IN)
YELLOW / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

YELLOW, 7/16 300 FEET
283137-300
2.8 KG (6.25 LB)
11 MM (7/16 IN)
YELLOW / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)

YELLOW, 7/16 CUSTOM LENGTH
283137
2.8 KG (6.25 LB)
11 MM (7/16 IN)
YELLOW / WHITE
GENERAL USE
40.5 KN (9,107 LBF)
LOW-STRETCH
396 M (1,300 FT)
